Metal steel pipe roll forming machine with lock seam
Guarantee of the machine
1). Engineer will give free training lessons to labors in buyer’s factory.
2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer.
3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
Machine production
This is machine includes a decoiler, feeding, leveling, main roll former. Hydraulic cutting and output table.
It is for producting downspout/down pipe, mainly color steel material, we can make the machine accoring to your requirements, both square pipe and round pipe.
Main technical parameters
| Material of the profile | GI or color steel |
| Thickness range | 0.3-0.8mm |
| Main motor power | 3kw, AC motor |
| Machine Voltage | 380 V, 50 Hz, 3Phase |
| Groups of roller stations | about 20 stations |
| Shaft diameter | ￠65mm |
| Working speed | 10m/min |
| Transmission | by chain, one inch |
| Material of blade | Cr12, 58-62 HRC hardness |
| Hydraulic power | 5.5KW |
| Working pressure | 12Mpa adjustable |
| Length measuring | Automatic encoder Omron |
| Control | PLC |
| Tolerance of length: | +/- 1.5mm |

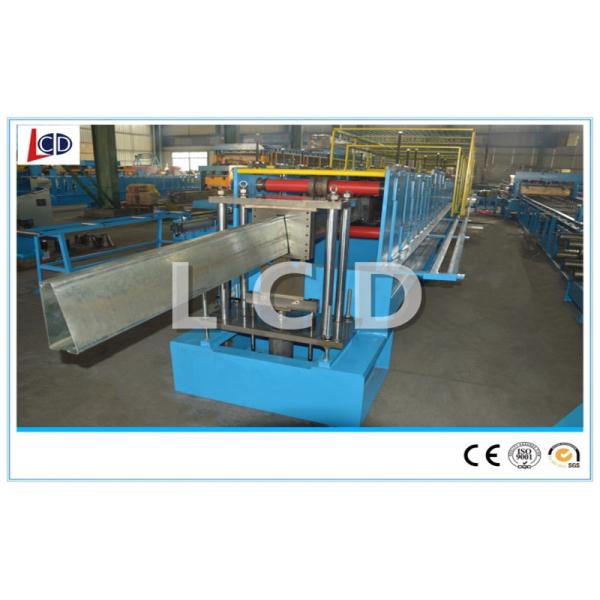

Machine pictutes
